High-quality prosthesis printed
with increased details in printing

Smaller and Lighter

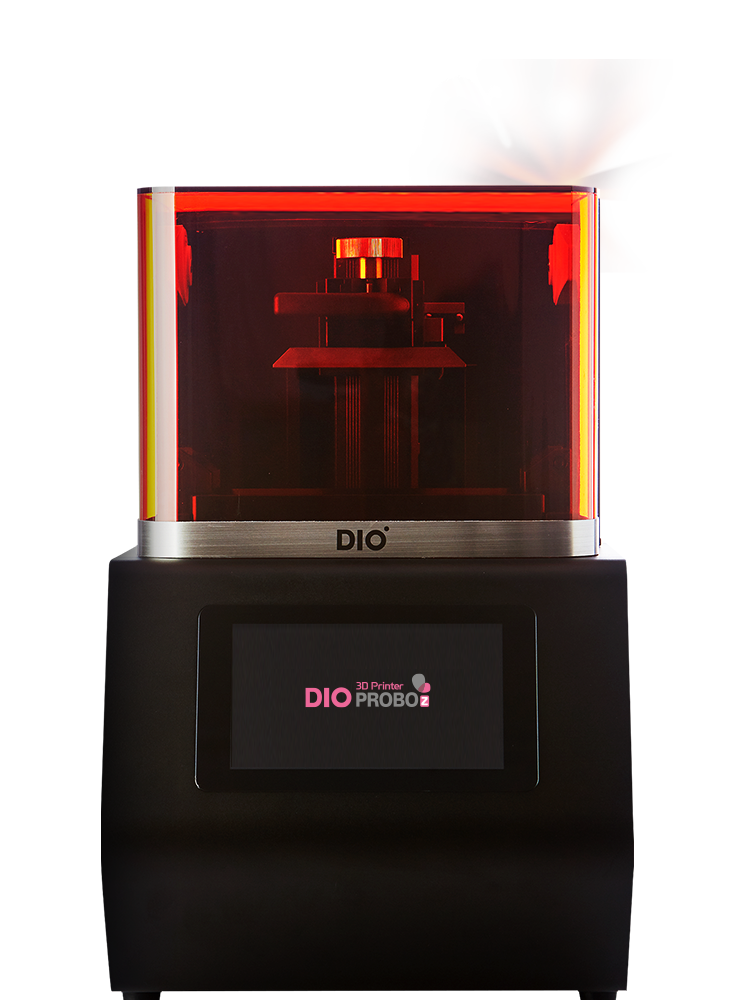

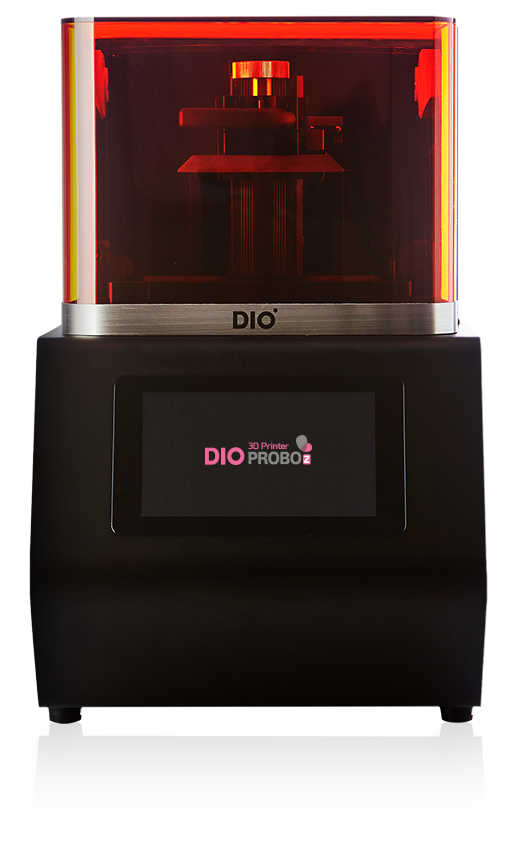

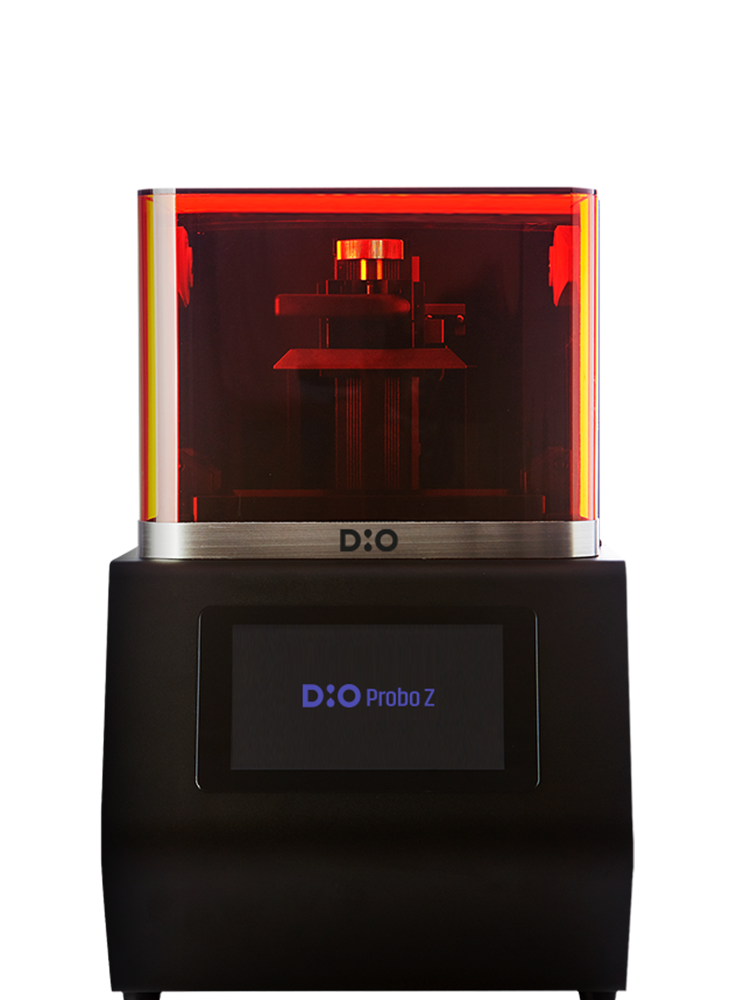

DIO PROBO Z

High-quality
and accuracy

Protect user’s
eyes and resin

Touch screen

Smaller and
lighter exterior

Brochure
Download

Dimension

300x378x484mm

Light Wavelength

405nm

Weight

20kg

Build Volume

105.6x59.4x80mm

Type

DLP

XY Resolution

55um

Touch Screen

7inch

Layer

25, 50, 100um

DIO PROBO Z

Dual Light Source
DIO PROBO Cure2

The new DIO PROBO Cure 2 introduces a double sided curing for
more effective outcome to improve the prosthesis production progress.
Compared with the original curing machine, PROBO Cure 2 features a stronger
dual LED light sources with increased luminous intensity and uniformity.

Dimension
249x320x216mm

Light source
405nm LED

Weight
7.5kg

Input Voltage
AC 100-240V,
50/60Hz

Light Position
Top / Bottom

Curing Volume
100x100x42mm

DIO PROBO Slicer
software

Optimized to work with DIO PROBO Z,
DIO PROBO Slicer boasts short working time
and an automated workflow with maximized efficiency.

DIOnavi.
3D Printing Materials

Core materials to lead the global dental 3D printing technology.

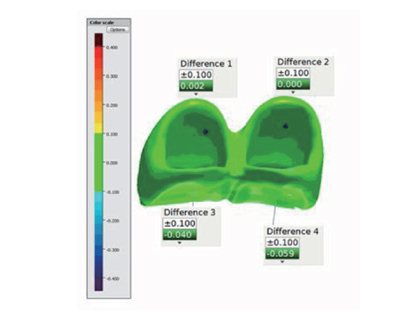

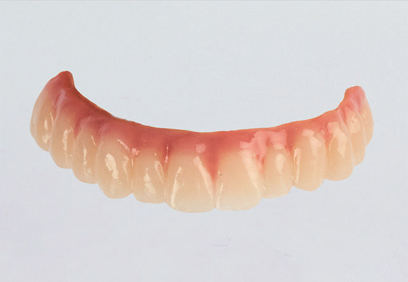

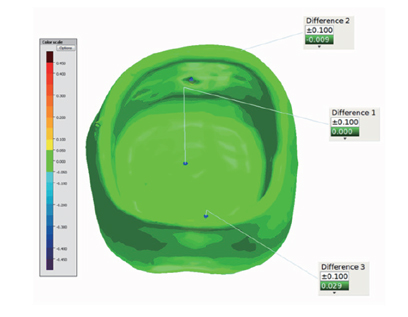

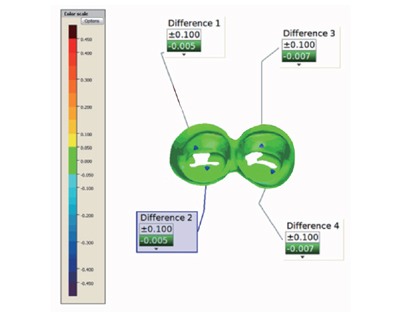

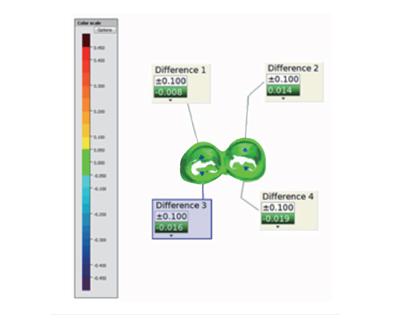

DIOnavi-P.MAX is a photopolymer resin for printing prostheses such as dental crowns or bridges. The material is biocompatible and the safety and strength of printed crowns and bridges have been proved through strength, toxicity, and biological tests, It is a material that has been tested for toxicity and biological test on the human body as well as its strength.

Property

Value

Method

Color A0, A1, A2, A3, B1 Shade Guide
Flexural strength >80MPa ISO 10477:2003
Water sorption <40㎍/㎟ ISO 10477:2003
Water solubility <7.5㎍/㎟ ISO 10477:2003
Hardness shore D >80 ISO 868:2003

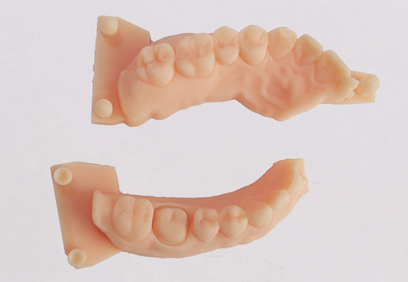

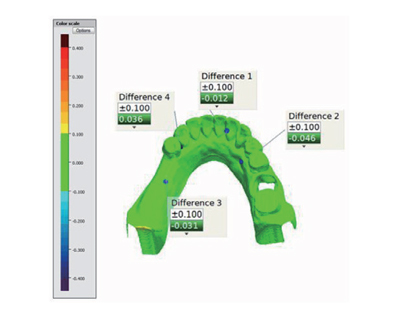

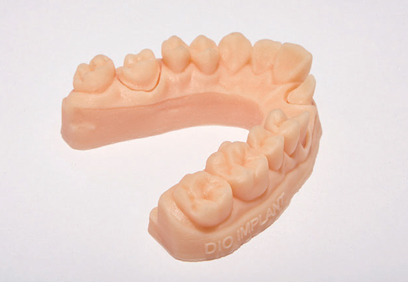

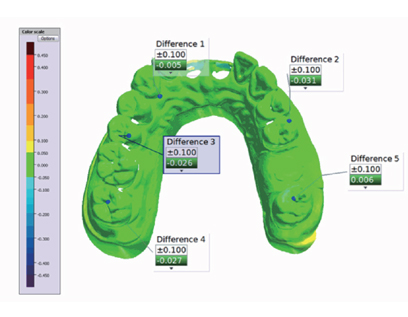

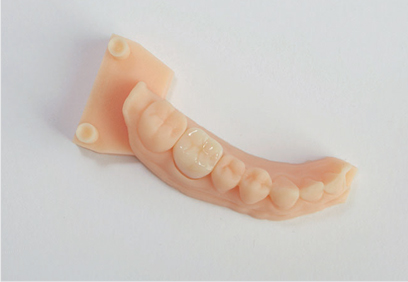

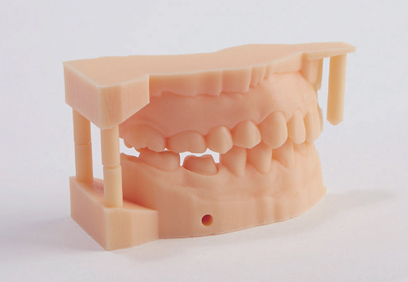

DIOnavi-Model is a photopolymer resin for printing dental models that are used for counseling and modeling. This material has a significantly lower shrinkage rate considering its fit and margin, and it also provides the same level of visibility as the impression model.

Property

Value

Method

Color Orange -
Flexural strength >80MPa ISO 178:2010
Hardness shore D >80 ISO 868:2003

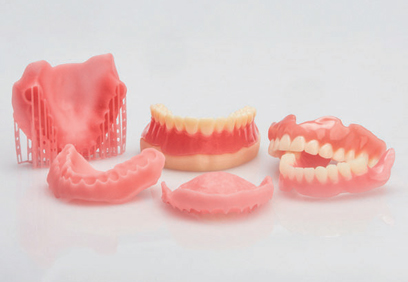

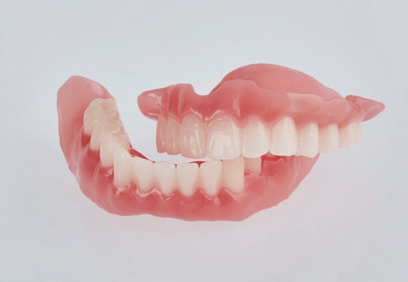

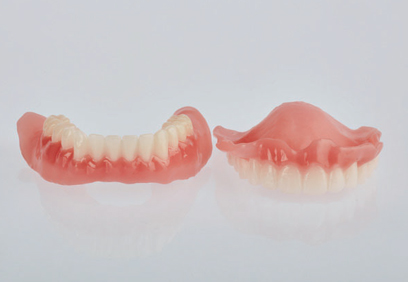

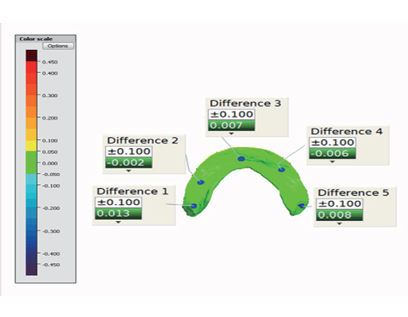

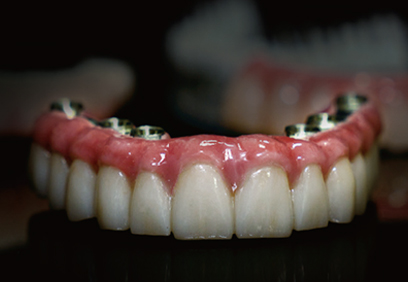

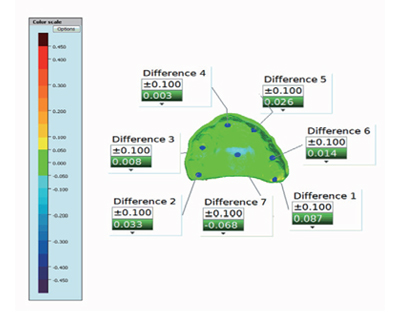

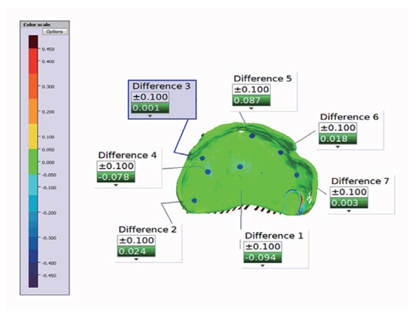

DIOnavi-Denture02 is a biocompatible photopolymer resin that can be printed with a 3D printer to make denture bases. It can be used to manufacture Full Dentures or partial dentures. It is material that has been tested for toxicity and biological test on the human body.

Property

Value

Method

Color Pink(One color) -
Flexural strength >80MPa ISO 20795:2013
Water sorption <32㎍/㎟ ISO 20795:2013
Water solubility <1.6㎍/㎟ ISO 20795:2013
Hardness shore D >80 ISO 868:2003

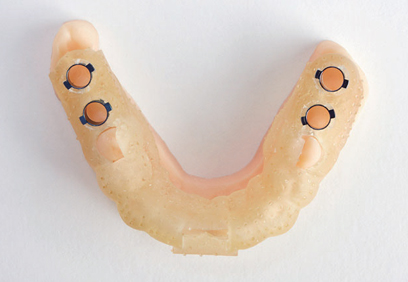

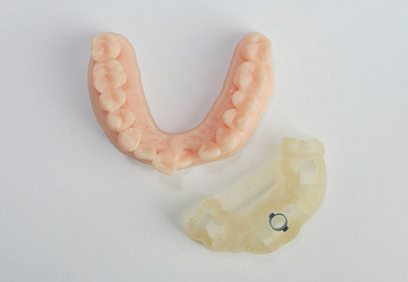

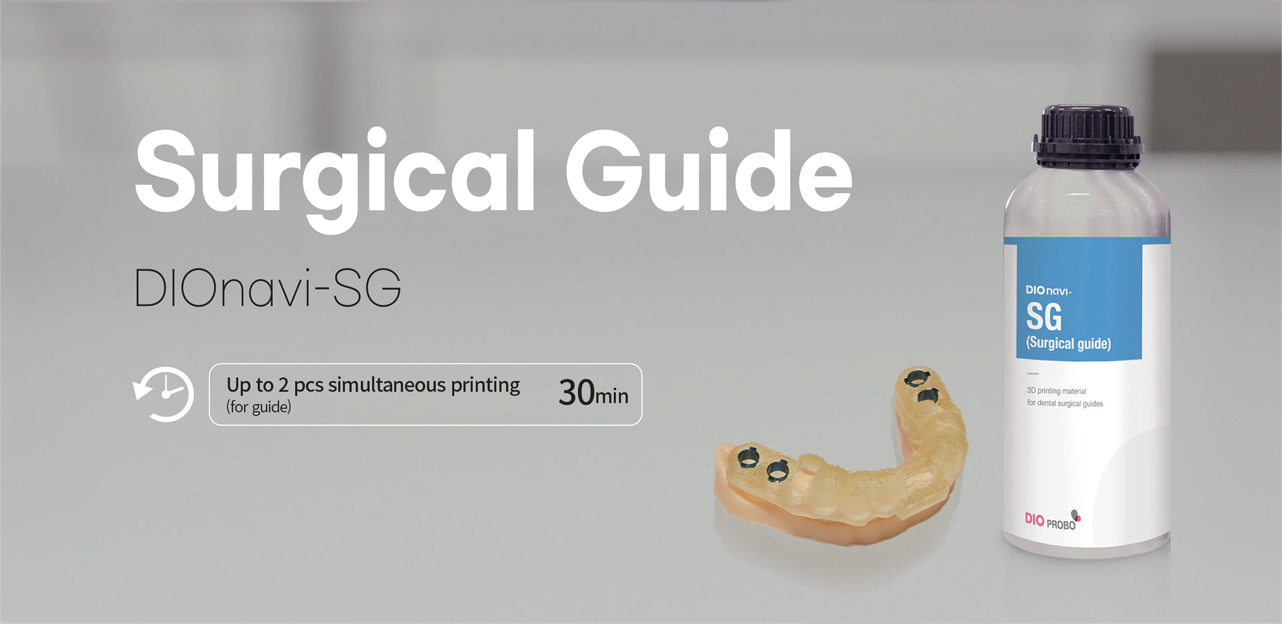

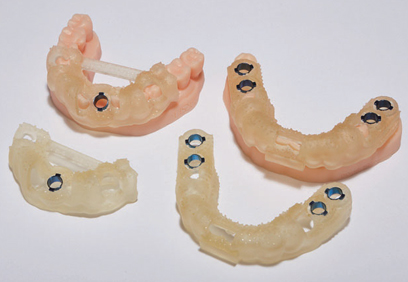

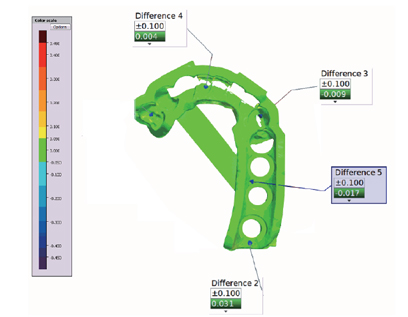

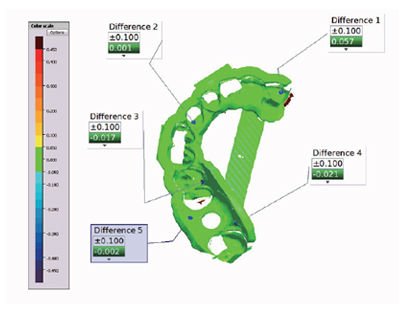

DIOnavi-SG is a biocompatible photopolymer resin developed for printed surgical guides used in patient-customized implant surgeries. The printed guide is placed on the patient's teeth before surgery, defining the exact angle, depth and location of the implant. It is a material that has been tested for toxicity and biological test on the human body as well as its strength.

Property

Value

Method

Color Yellowish -
Flexural strength >80MPa ISO 20795:2013
Water sorption <32㎍/㎟ ISO 20795:2013
Water solubility <1.6㎍/㎟ ISO 20795:2013
Hardness shore D >70 ISO 868:2003

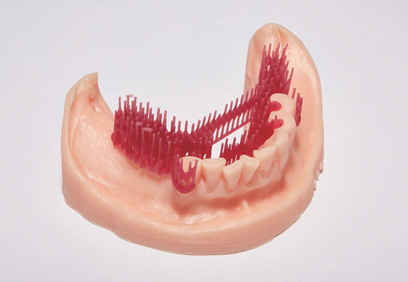

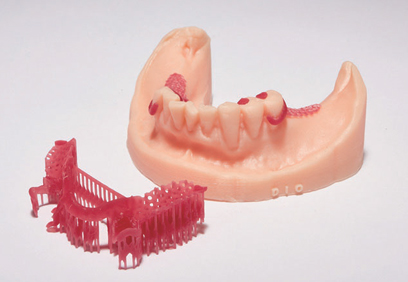

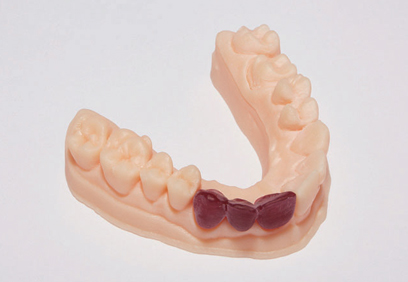

DIOnavi-Cast is a photopolymer resin used for printing casting patterns. It is a 3D printing material that is residue-free after burning out and it can be used for all casting purposes such as partial frames, metal crowns, and orthodontics appliances.

Property

Value

Method

Color Dark-red -
Flexural strength >65MPa ISO 178:2010
Hardness shore D >70 ISO 868:2003
